E-Z COAT® is a mold releasing rubber compound for recovering releasing property of the package mold after cleaning with E-Z CLEAN® .
E-Z COAT® is an eco-friendly product that generates less fume as well as excellent releasability and persisitence.
Product introduction page
Product introduction page
Product Introduce page
Product Introduce page
E-Z COAT® is a mold releasing rubber compound for recovering releasing property of the package mold after cleaning with E-Z CLEAN® .
E-Z COAT® is an eco-friendly product that generates less fume as well as excellent releasability and persisitence.
____________
Unience has a releasing force measuring device. We can compare and evaluate the performance of wax rubber.
At the request of the customer, we can provide releasing force data for each EMC.
____________
All of our E-Z COAT generated fume less than 10 sec.
also, the odor from E-Z COAT is not unpleasant and not strong.
____________
E-Z Coat has better workability than competitive products. Even though Mold pressure is exteremly high,
E-Z Coat can maintain its own shape and not break sheet after curing.
in addition, E-Z coat can fill in small cavity easily.
<Competitor Wax Rubber>
<E-Z COAT>
____________
-No Leadframe
____________
Melamine
E-Z CLEAN
____________
Grade |
Mold Pressure
|
Mold Temp.
|
Curing Time
|
WS7500NS |
Low clamp pressure |
150~200 |
250~300 |
WS 4000 |
Middle clamp pressure |
||
WS8400 |
High clamp pressure |
____________

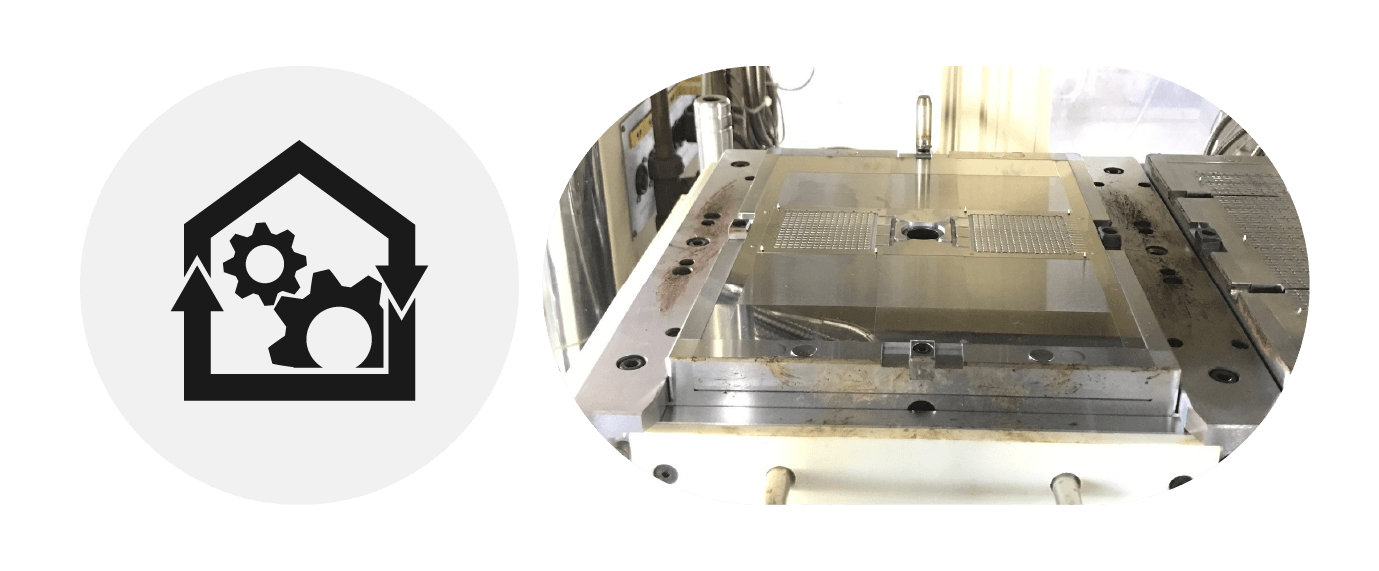

Step 01. Setting
: Setting the operation parameters in cleaning mode.

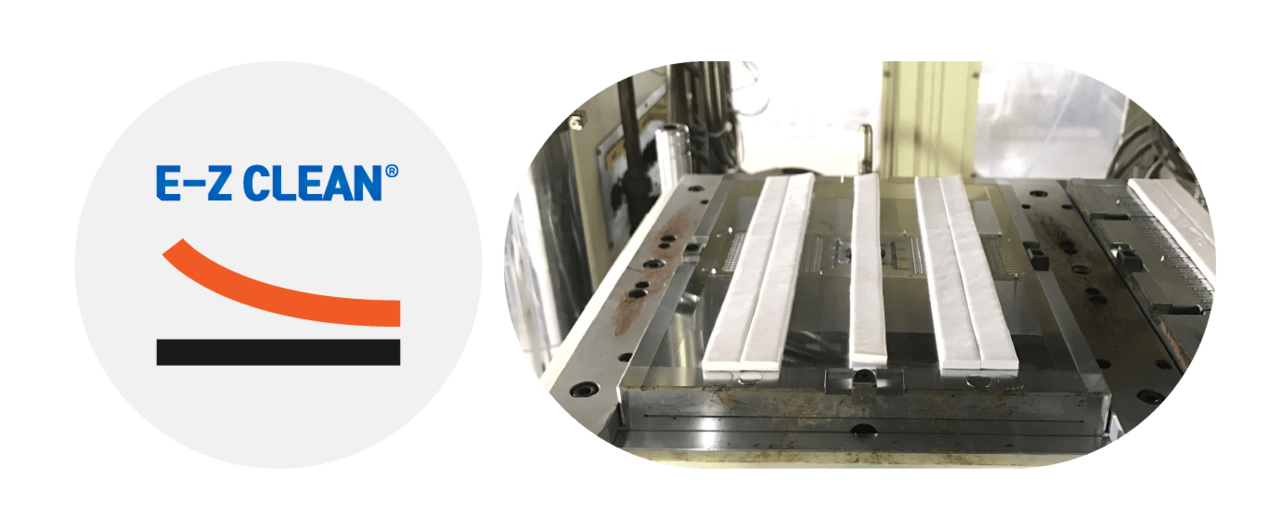

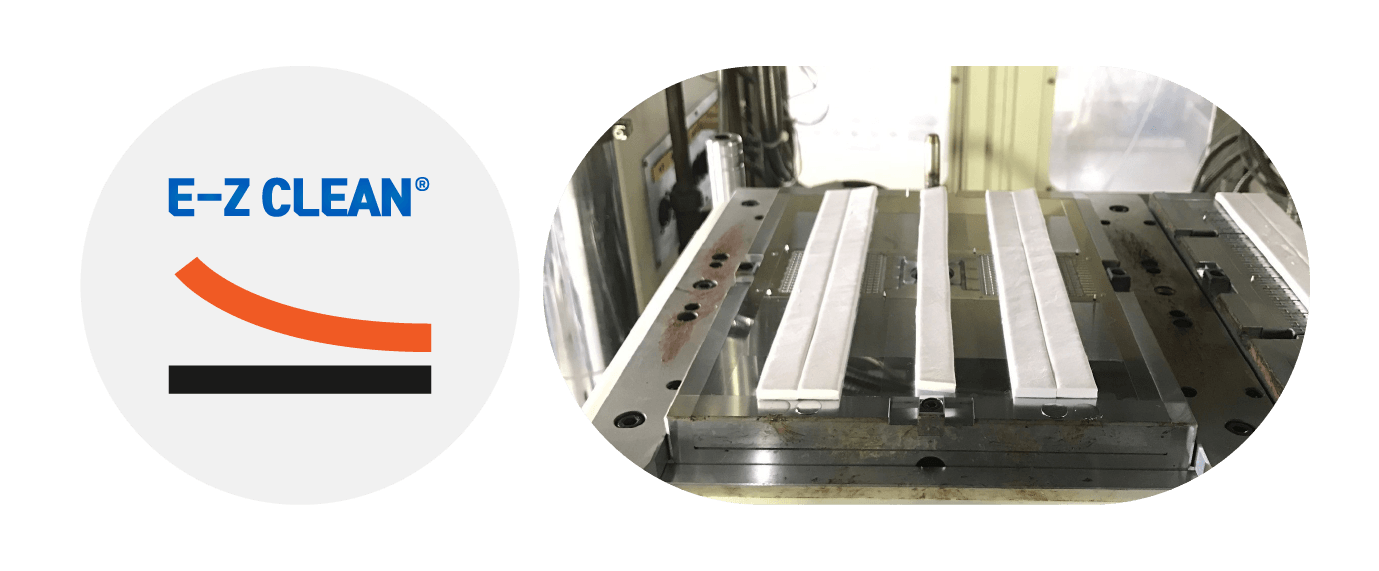

Step 02. Loading
: Loading E-Z CLEAN® rubber sheet.

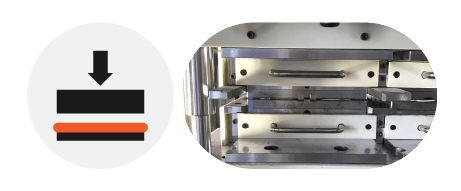

Step 03. Press
: Press Molding.

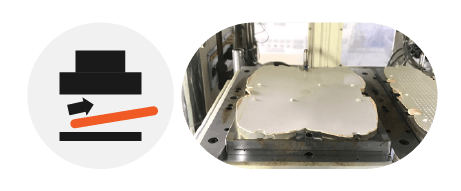

Step 04. Take out
: Take-out of the E-Z CLEAN® sheet.
Step 05. Repeat
: Repeat the above process until the cleaning is completed.
Step 06. E-Z COAT
: Perfrom 1 or 2 shots of E-Z COAT®.

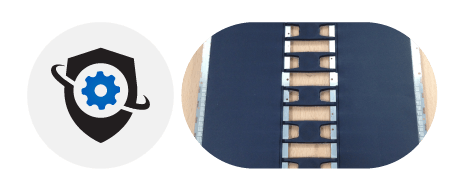

Step 07. Dummy
: Dummy shot & EMC molding.
Step 01. Setting
: Setting the operation parameters in cleaning mode.
Step 02. Loading
: Loading E-Z CLEAN® rubber sheet.
Step 03. Press
: Press Molding.
Step 04. Take out
: Take-out of the E-Z CLEAN® sheet.
Step 05. Repeat
: Repeat the above process until the cleaning is completed.
Step 06. E-Z COAT
: Perfrom 1 or 2 shots of E-Z COAT®.
Step 07. Dummy
: Dummy shot & EMC molding.
____________
The rubber sheets should be as the followings.
5℃ or Below
: Store the sheets at 5℃ or below.
30 Minutes or More
: Stand at room temperature for at least 30 minutes.
Seal up
: Put the remaining sheets in the PE bag seal up and store at 5℃ or below.
5℃ or Below
: Store the sheets at 5℃ or below.
30 Minutes or More
: Stand at room temperature for at least 30 minutes.
Seal up
: Put the remaining sheets in the PE bag seal up and store at 5℃ or below.
